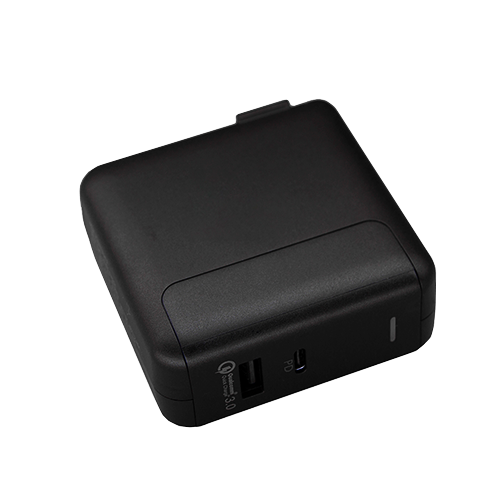

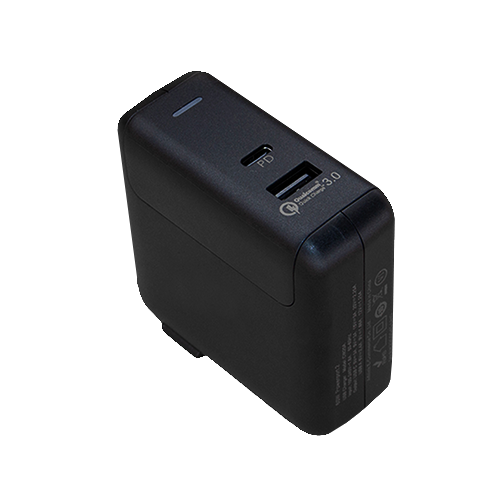

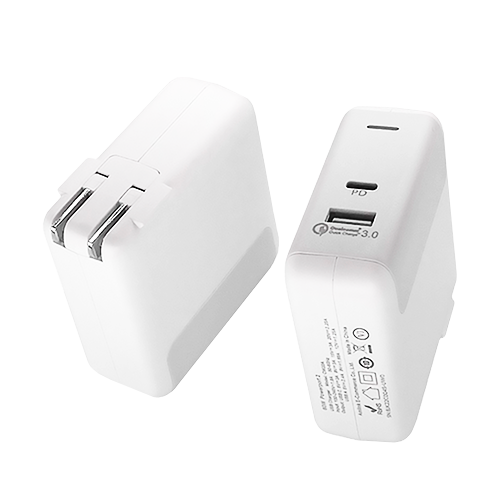

cw20a -ka电子

cw20a
  • cw20a
  • cw20a
  • cw20a
  • cw20a
cw20a
产品型号:cw20a
charging mode:pd fast charge,qc fast charge
interface:type c usba, dual ports
input:100-240v-0.6a 50hz
output:pd:5v3a/9v3a/15v3a/20v2.25a
qc:5v3a/9v1.67a/12v1.25a
power:60w
dimension:71.5*71.5mm*30mm
housing material:pc
protect function:output over-current protection,overvoltage protection,over-temperature protection,short-circuit protection
applicable environment:indoor use
certification scope:cb、ctuvs、bsmi、fcc、nrcan、doe、cec、cp65、rohs
产品详情

1.type-c port supports pd 45w fast charging function, high power density, to meet laptops and other medium power equipment charging; a port has a qc3.0 function; dual port output to meet the charging needs of different equipment.

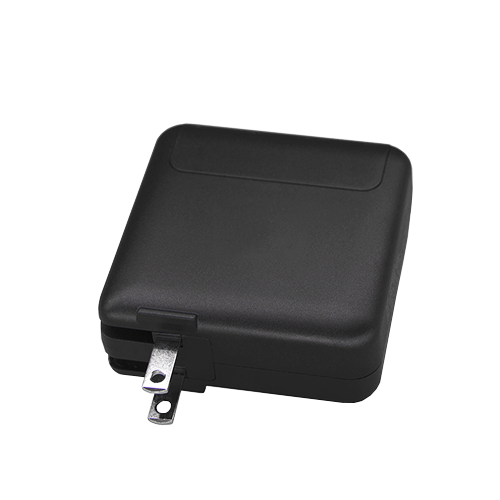

2.the surface of housing is vdi-21 texture surface design, anti-scratch; foldable plug design, easy to carry, beautiful and generous, economical and practical.
